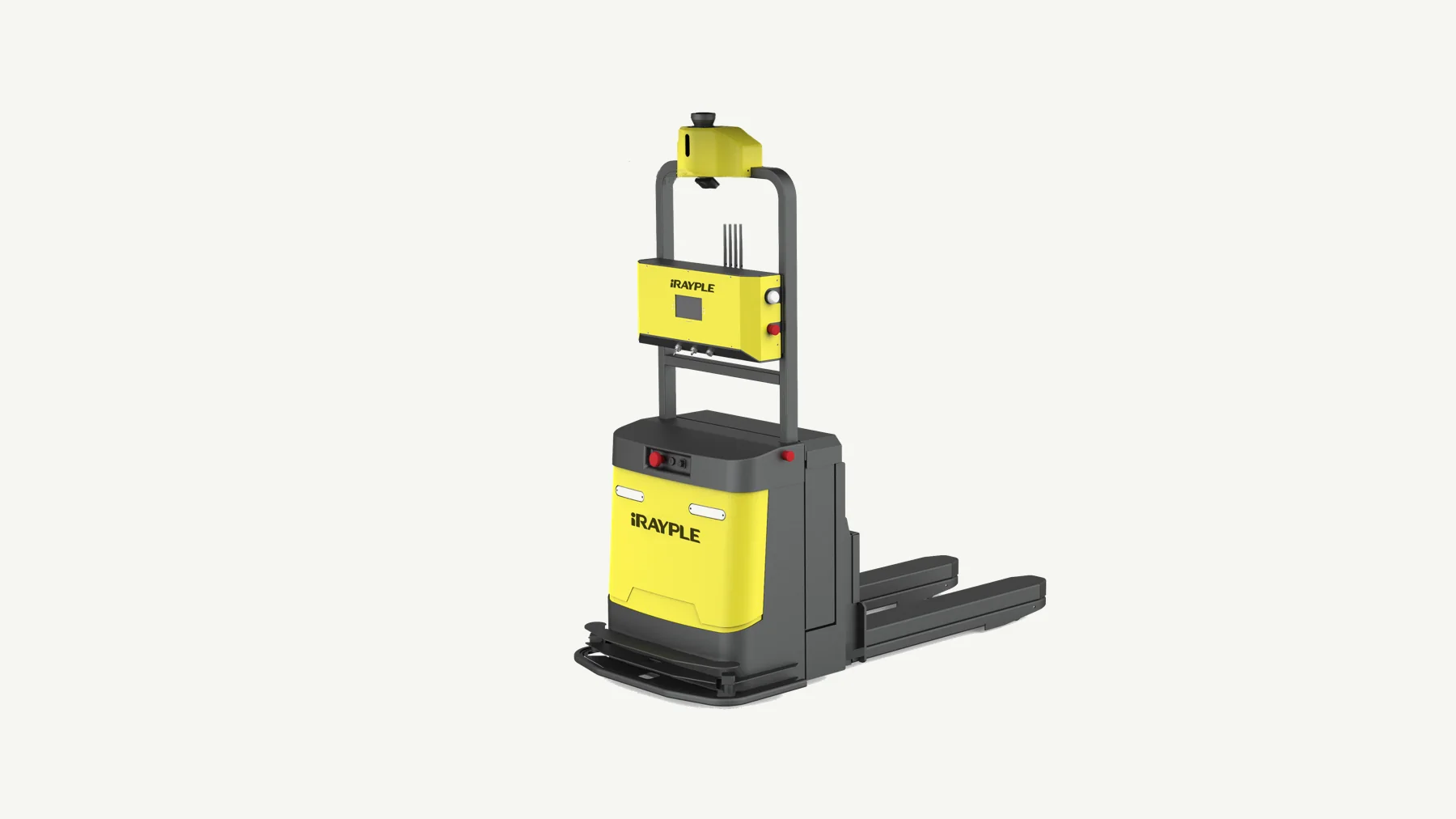

D150 Series Pallet Jack AMR
Compact pallet jack AMR for pallet handling in narrow warehouse routes, with SLAM navigation, TOF camera pallet recognition, and laser/vision obstacle avoidance listed in the source document.
Source: AGV-SRC-08-rcs-dispatch
Public specifications from supplied D150 source
Values are copied as public RFQ planning references. Final suitability depends on pallet, route, floor, mapping, docking, and integration review.
| Item | Value | Trace |
|---|---|---|
| Rated load | 1500 kg | AGV-SRC-10-d150 |
| Dimensions | 1607 x 829 x 1910 mm | AGV-SRC-10-d150 |
| Fork dimensions | 170 / 75 / 1150 mm | AGV-SRC-10-d150 |
| Navigation | SLAM | AGV-SRC-10-d150 |
| Rated speed | 1.2 m/s loaded, 1.5 m/s unloaded | AGV-SRC-10-d150 |
| Aisle width as loaded | 1900 mm with 1000 x 1200 pallet | AGV-SRC-10-d150 |
| Parking accuracy | +/-10 mm | AGV-SRC-10-d150 |
| Battery life | 6 h | AGV-SRC-10-d150 |
| Charging time | 1.5 h | AGV-SRC-10-d150 |
Pallet handling scope
- TOF camera-based pallet recognition is listed as standard in the D150 source document.
- Automatic pose correction is listed with support for up to 15 degrees of deviation.
- Laser and vision fusion obstacle avoidance, fork-tip obstacle avoidance, safety bumper, and audio-visual alarm are listed as standard safety items.
The RFQ should include pallet size, fork pocket structure, pallet color/material, load envelope, docking tolerance, channel width, and any precision points.
Source: AGV-SRC-10-d150
Source: AGV-SRC-10-d150
Source: AGV-SRC-10-d150
Turn the D150 reference into a project brief
Send route layout, pallet drawings, load range, pickup/drop points, site photos, and integration requirements so the review can separate confirmed facts from open questions.
